Fused Quartz Glass Window Disc JGS2 Standard With Customized Size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | SiO2 99.99% | Color: | Clear |
|---|---|---|---|
| Shape: | Round | Origin: | China |
| Size: | Customized | Standard: | JGS1 JGS2 JGS3 |
| Temperature: | 1200℃ | Thickness: | Customized |
| High Light: | round glass discs,quartz disk |
||

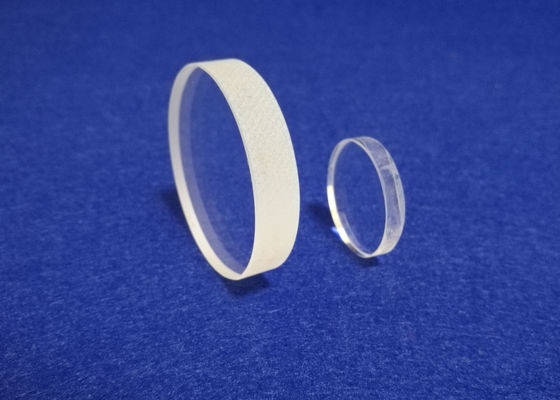

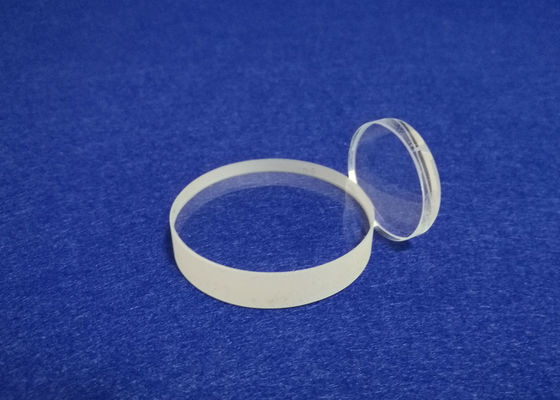

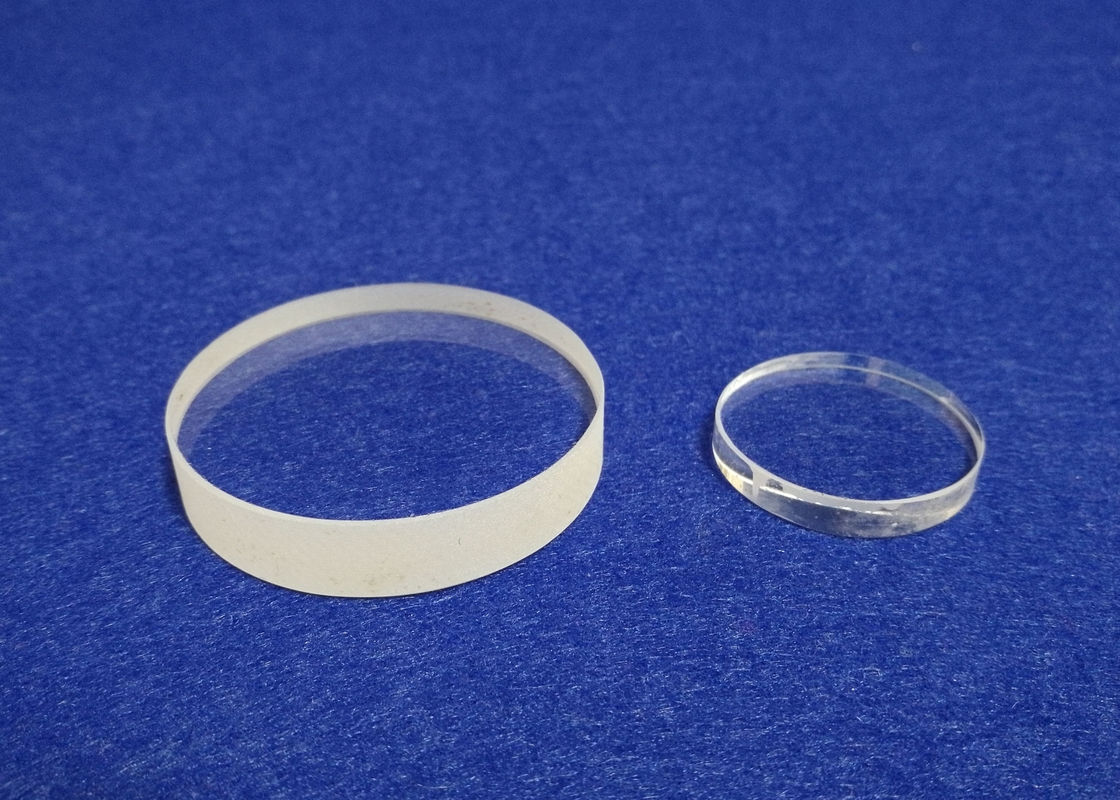

Customized High Quanlity Transparent/Clear Quartz Glass Window Disc/Plate With OD35mm Thickness 5mm JGS2
Product Details
1. SiO2> 99.99% ,Quartz Glass Disc
2. Operating Temperature: 1250℃
SoftenTemperature: 1730℃
3. Excellent visual and chemical performance .
4. without surface coating and infectant.
5. Health care and environmental protection.
6. Any dimension can be made.
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1683°C | Annealing Point | 1215°C |
Package & Shiping
We offer best transportation solutions:
* For small quantities, you can choose DHL or FedEx. It is safe and fast. We have a good rate withthem. Please contact us for rates.
* Ocean Shipment is economical for big quantity.
* We can also help Custom clearance at destination port and deliver goods to your warehouse or office. And the cost is extra.
FAQ:
Q1. Can I have a sample order for quartz products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for Quartz product order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Quartz Products?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Quartzproduct?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
